2024:[Review by AAA Switzerland] - Swing headshell [German]

The 17th Annual Positive Feedback Writers' Choice Awards for 2020

Click image to read the review

*** For more detailed information, including theoretical and experimental data, please visit this catalog page. the catalog page.


[Features of the new spring version]
- Two springs hold swing head: more dynimic and more firm bass
- Perfect swing balancing: better tracking ability
- Easy to set up

[ Specs ]
- Gross weight: 11.9g
- Swing head weight: 4.5g
- CNC machined aluminum

[ Following accessories and parts are included ]

- Headshell leads: Gold plated phosphor bronze connectors + Cardas copper litz wire with teflon jacket
- Cartridge fitting screws (PC): set of 3 pairs ( 6mm / 10mm / 15mm )
- Hex screwdriver
- Manual

[Headshell plug option]

Why Tonearm Geometry Matters

The primary goal of proper tonearm geometry is to ensure the stylus exerts equal pressure on both groove walls. The Nasotec Swing Headshell
maintains this balance throughout the entire record, ensuring that sound reproduction remains perfectly balanced between the left and right
channels.
Experience more detail, a more natural tone, and superior tonal balance. The improvement in sound quality will exceed your expectations.

1. Superior Tracking Performance
The Swing Headshell provides consistent tracking across the entire record, eliminating the typical performance gap between the inner and outer
grooves.

■Balanced Movement: Two precision-tuned springs create a "well-balanced swing," allowing for flawless tracking from the first track to the last.
■The "Short Arm" Effect: You can think of the Swing Headshell as a secondary, "micro" tonearm. Its soft joint allows this short, lightweight
  mechanism to follow the groove vibrations more delicately and with perfectly balanced force.
■Deep Groove Contact: Because the swing mechanism is light and flexible, the stylus can seat itself deeper in the groove. This allows it to track

  both side walls with equal pressure, a performance improvement we have verified through rigorous LP test records.

2. Minimized Tonearm Resonance
Most vibrations generated by the cartridge are dissipated through the swing joint, meaning only a negligible amount of vibration ever reaches
the main tonearm.

■Resonance Decoupling: In our comparative resonance tests, tonearms equipped with the Swing Headshell performed significantly better than
  standard tonearms.
■Superior Stability: Thanks to the mechanical decoupling provided by the joint, this system manages resonance more effectively than traditional
  "one-body" headshells or integrated tonearms.

3. Extended Stylus Lifespan

■Reduced Friction: The flexible swing mechanism reduces excessive pressure on the stylus, preventing uneven "one-sided" wear.
■Cantilever Protection: Because the Swing Headshell maintains equal pressure on both groove walls, it prevents the stylus cantilever from bending
  or becoming skewed over time.

[ Photos from users ] - Click here
[Manual] English / German
Patent: Korea and USA

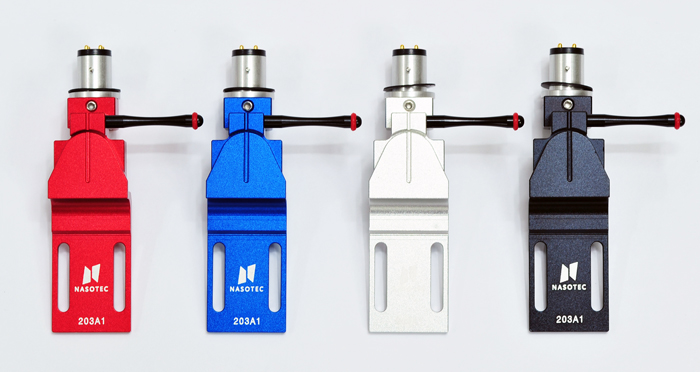

What is the difference between 202A1 and 203A1?
The two versions are structurally and functionally identical; only their external appearance differs.
